100NS Profile

Standing Seam Roof Panel

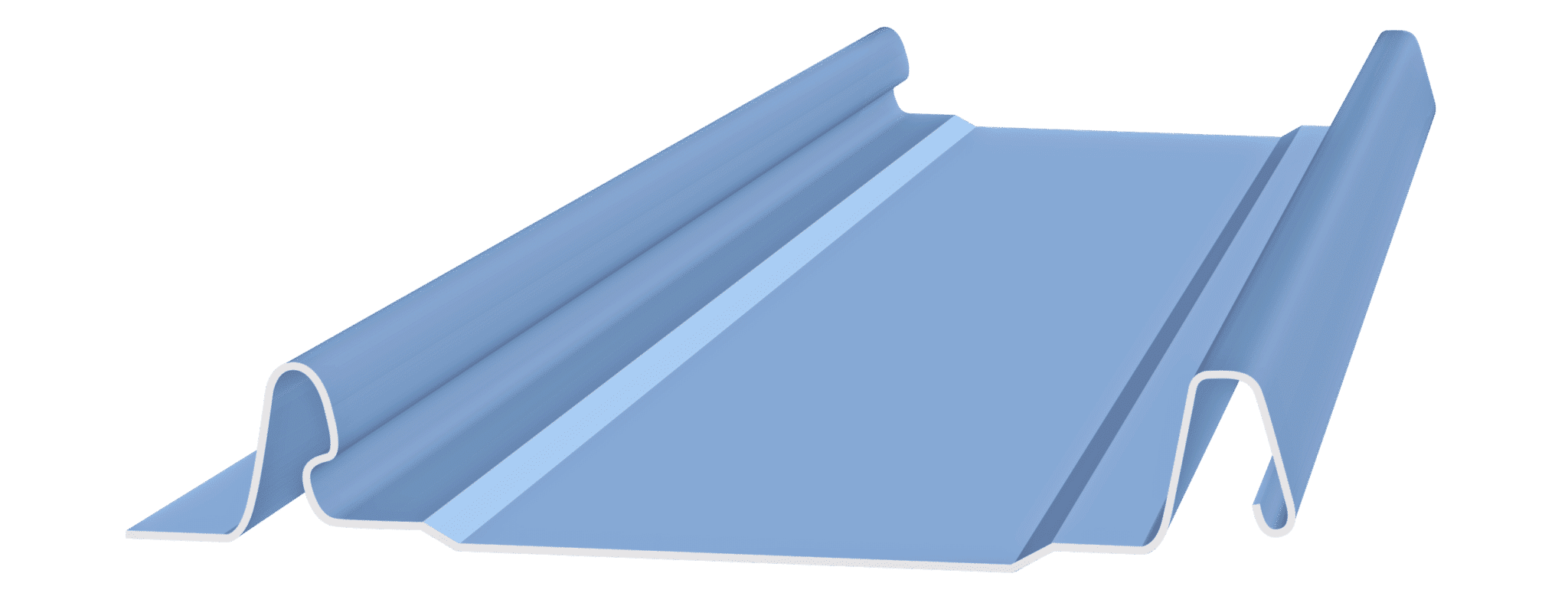

The 100NS profile offers unlimited design potential with its sleek, crisp appearance and attractive shadow lines. Eliminating the need for metal roof clips, the concealed 1″ self-locking Snap Lock system creates a powerfully protective seal. Versatile and refined, this easy-to-install metal roof delivers superior beauty, durability and strength while showcasing architectural details.

Technical Information:

  • 550S Profile Data Sheet

  • Substrate

    Painted Galvalume® –24ga
    Drexlume™– 24ga
    Aluminum – .032″

    Panel Rib

    Factory made or field rolled to exact lengths.
    Options: flat panel, clip relief, striations, bead, small and large V, small and large pencil.

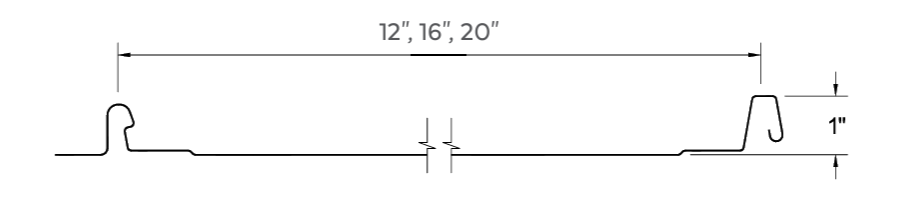

  • Standard Panel Widths

    12”, 16”, and 20″
    Metal Edge design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.

  • SLOPE

    Minimum slope 3:12

    MINIMUM ROOF PITCH

    3:12 – low roof pitch

    Testing

    UL 580 Wind Uplift (Class 90)
    UL 2218 Class 4 Hail Impact
    UL 263 Fire Certification
    UL 790 Class A Fire Rating
    UL Environmental – SRI Third Party Verified
    Florida Building Code Approved

    Test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available.

    Installation

    Can be installed over plywood decking and Drexel Metals MetShield® underlayment.

  • 35 YEAR WARRANTY - GALVALUME AND ALUMINUM SUBSTRATES

    35 year non-pro-rated PVDF Paint Warranty
    High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.

    25 YEAR WARRANTY - DREXLUME SUBSTRATE

    Mill finished Galvalume® with a two-sided, clear acrylic finish.
