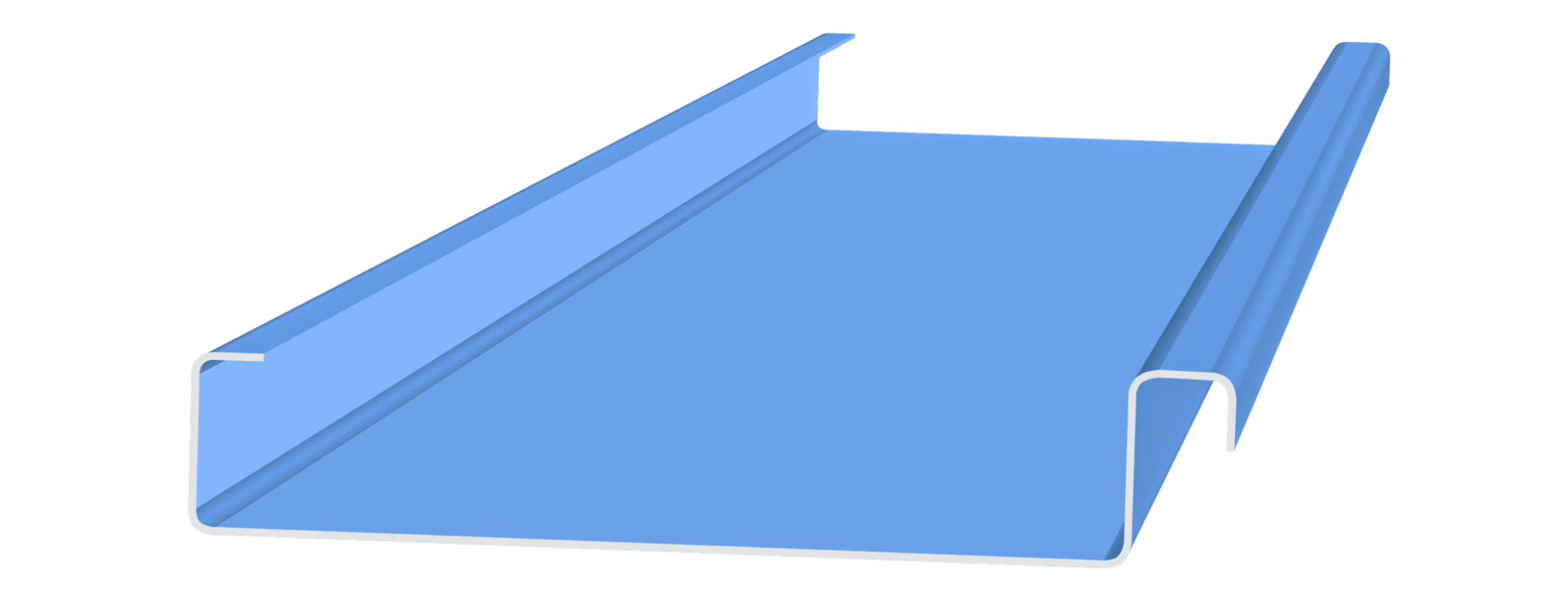

100SS Profile

Standing Seam Roof Panel

Our DMC 100SS 1″ mechanically seamed metal roof system is built with high-quality materials and has over a century of proven performance. It’s perfect for both light commercial and residential use, and its smartly detailed profile can even be curved for added architectural appeal. The panels are installed without any end laps, ensuring maximum protection from all types of weather and watertight protection for curved installations.

Technical Information:

  • 100SS Profile Data Sheet

  • Seam

    Single Lock (90 Degrees)

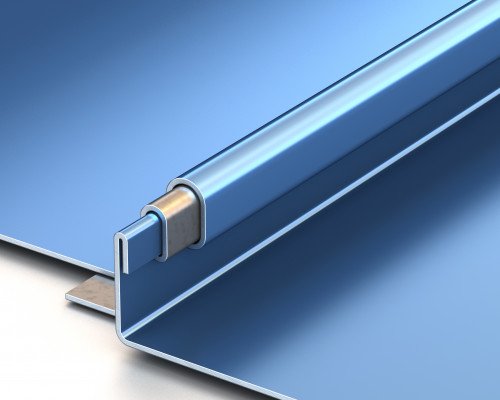

    Double Lock (180 Degrees)

    Substrate

    Painted Galvalume® – 22ga, 24ga
    Drexlume™ – 22ga, 24ga
    Painted Aluminum – .032″, .040″
    Copper – 16oz, 20oz
    Zinc – .7mm, .8mm

    Panel Rib

    Factory made or field rolled to exact lengths.
    Options: flat panel, clip relief, striations, bead, small and large V, small and large pencil.

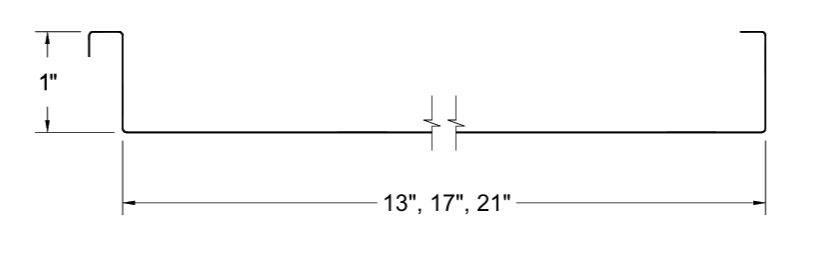

  • Standard Panel Widths

    13”, 17” and 21”
    Metal Edge design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.

  • Slope

    • Minimum slope 2:12

    • Minimum Roof Pitch

    • 2:12 – low roof pitch

    Testing

    • UL 580 Wind Uplift (Class 90)

    • UL 2218 Class 4 Hail Impact

    • UL 790 Class A Fire Rating

    • UL Environmental – SRI Third Party Verified

    Installation

    Can be installed over plywood decking with approved underlayments. Please see installation details for complete information.

  • 35 YEAR WARRANTY - GALVALUME AND ALUMINUM SUBSTRATES

    35 year non pro-rated PVDF Paint Warranty
    High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.

    25 YEAR WARRANTY - DREXLUME SUBSTRATE

    Mill finished Galvalume® with a two-sided, clear acrylic finish.
