175S Profile

Standing Seam Roof Panel

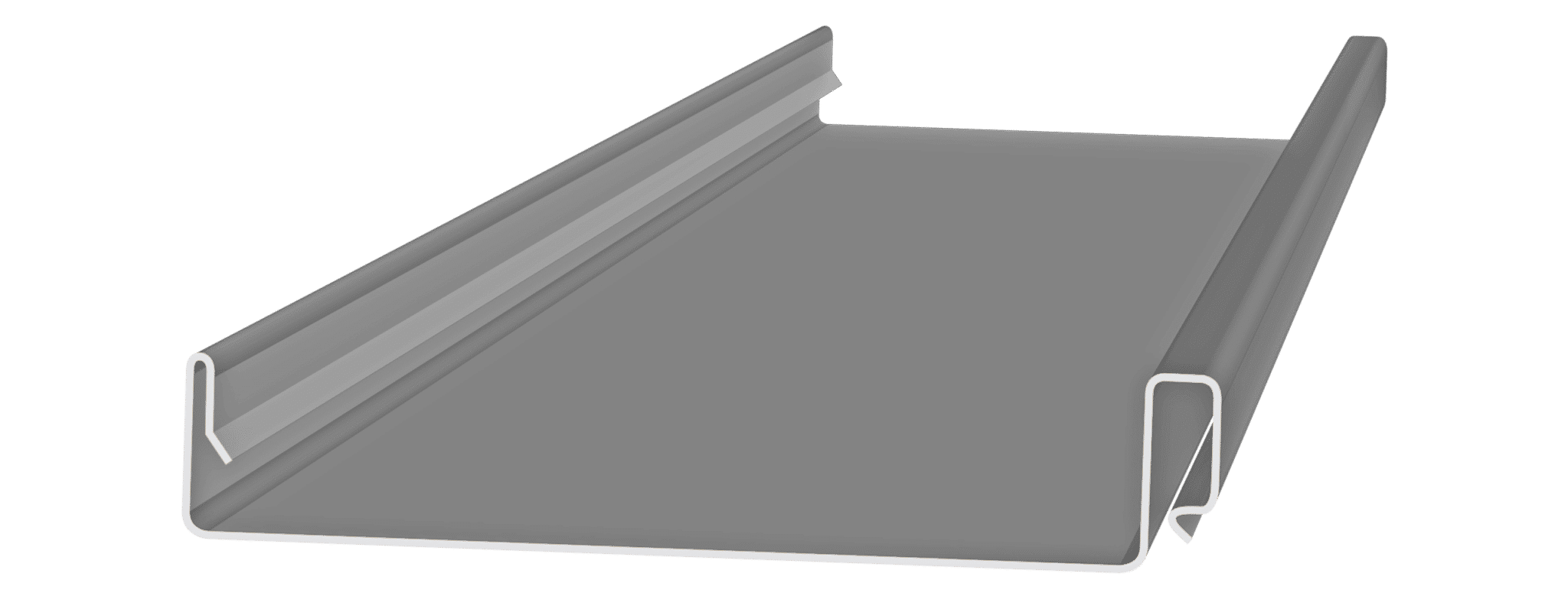

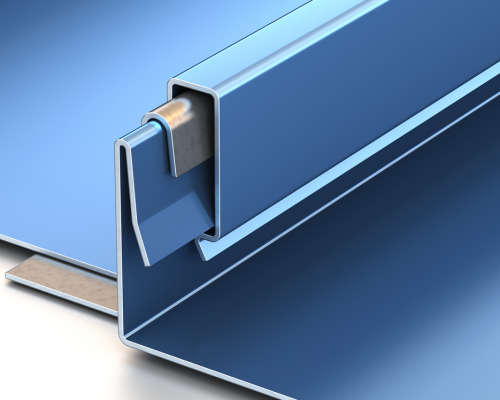

The 175S is distinctive for its broad width seam, impressive structural capabilities and easy Snap Lock installation. Featuring a 1-3/4″ seam height, this continuous interlocking engineered roof system has a concealed fastener and clip application that allows thermal movement and requires no mechanical seaming to ensure weathertight integrity. The installation is simple and quick, yet it withstands extremely high design pressures and is approved for use on Weather Tightness Warranty projects.

Technical Information:

  • 175S Profile Data Sheet

  • Substrates

    Painted Galvalume® – 22ga, 24ga
    Drexlume™ – 22ga, 24ga
    Painted Aluminum – .032″, .040″

    Panel Rib

    Factory made or field rolled to exact lengths.
    Options: flat panel, clip relief, striations, bead, small and large V, small and large pencil.

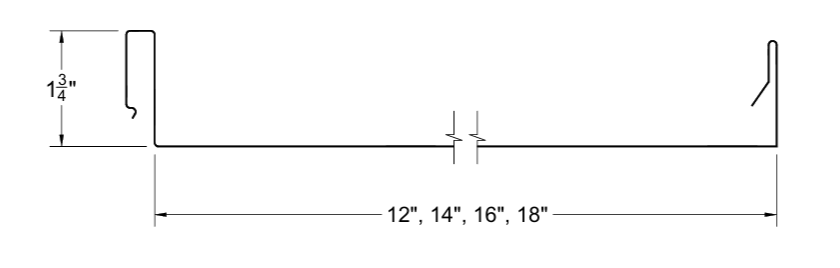

  • Standard Panel Widths

    12″, 14”, 16″ and 18”

    Metal Edge design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.

  • Slope

    • Minimum slope 2:12

    • Minimum Roof Pitch

    • 2:12 – low roof pitch

    Testing

    • UL 580 Wind Uplift (Class 90)
    • UL 1897 Extended Phase Wind Uplift
    • UL 2218 Class 4 Hail Impact
    • UL 790 Class A Fire Rating
    • UL Environmental – SRI Third Party Verified
    • ASTM E1646 Water Infiltration
    • TAS 100 Wind Driven Rain
    • ASTM E1680 Air Infiltration
    • ASTM E1886 Missile Impact
    • Miami-Dade County Approved
    • Florida Building Code Approved
    • Texas Department of Insurance Approval

    Installation

    Can be installed over plywood, steel decking, and Polyiso with approved underlayment, or open framing. Please see Drexel Metals installation details for complete information.

  • 35 YEAR WARRANTY - GALVALUME AND ALUMINUM SUBSTRATES

    35 year non pro-rated PVDF Paint Warranty
    High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.

    25 YEAR WARRANTY - DREXLUME SUBSTRATE

    Mill finished Galvalume® with a two-sided, clear acrylic finish.
