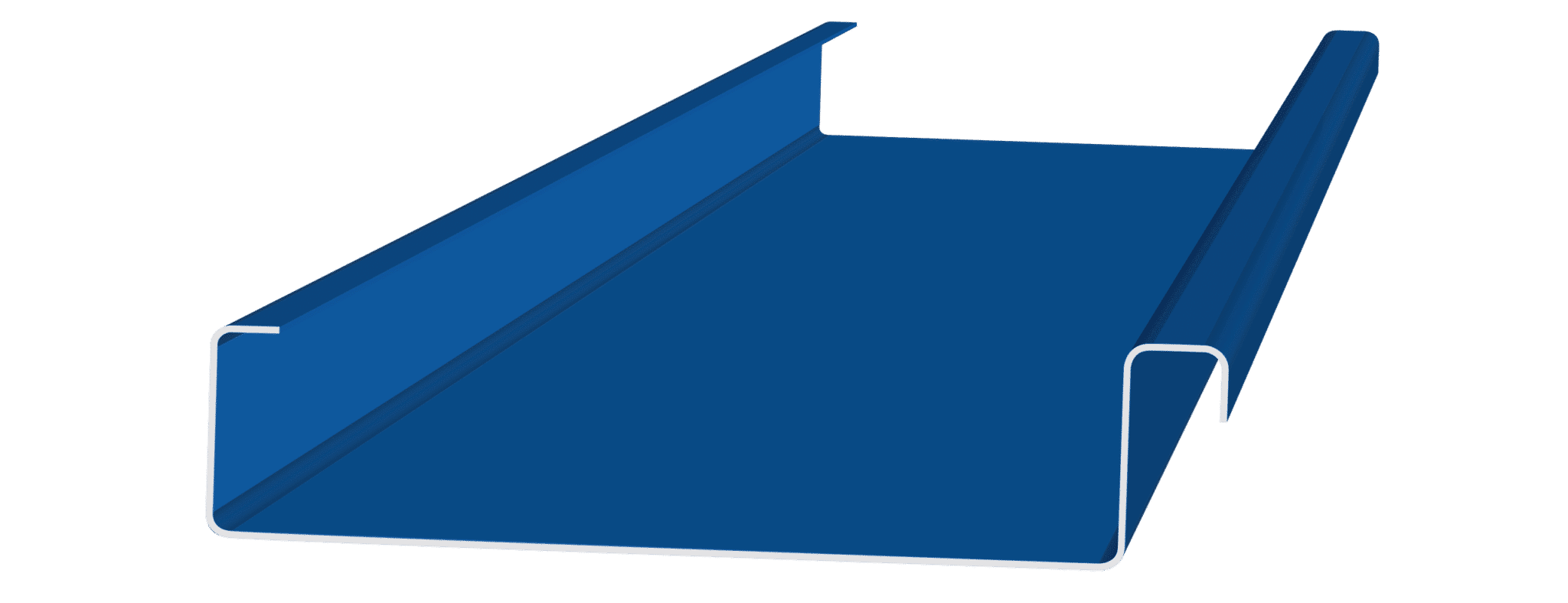

200S Profile

Standing Seam Roof Panel

The versatility of the 200S roof system makes it an ideal choice for low to steep slope applications. Performance-engineered to handle heavy-duty commercial and industrial projects, this 2″ mechanically seamed structural metal roof system will meet or exceed most wind load and government requirements from coast to coast. Concealed fasteners and floating clip systems reduce panel stress from changes in temperature and help maintain a smooth, uniform appearance. This product can also be curved for large barrel roofs or small canopies.

Technical Information:

  • 200S Profile Data Sheet

  • Seam

    Single Lock (90 Degrees)

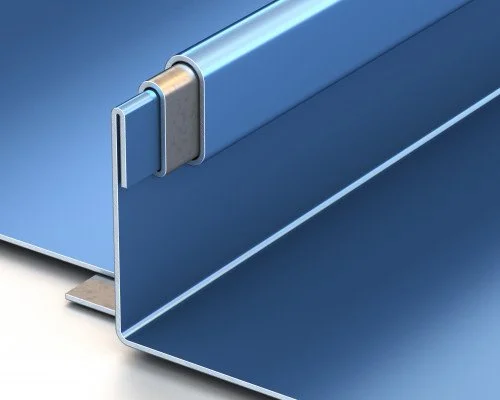

    Double Lock (180 Degrees)

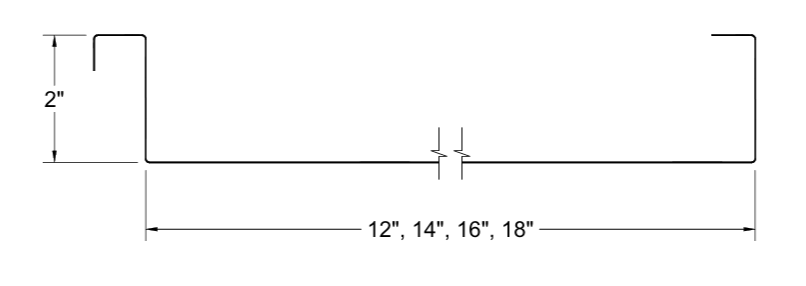

  • Standard Panel Widths

    12″, 14″, 16″, and 18″
    Metal Edge design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.

  • Slope

    Minimum slope 1/2:12

    Installation

    Can be installed over plywood, steel decking, and Polyiso with approved underlayment, or open framing. Please see Drexel Metals installation details for complete information.

    Testing

    UL 580 Wind Uplift (Class 90)
    TAS 125 Wind Uplift
    UL 1897 Extended Phase Wind Uplift
    UL 2218 Class 4 Hail Impact
    UL 790 class A Fire Rating
    UL Environmental – SRI Third Party Verified
    ASTM E1592 Uniform Static Air Pressure Uplift
    ASTM E1646 Water Infiltration
    TAS 100 Wind Driven Rain
    ASTM E1680 Air Infiltration
    ASTM E1886 Missile Impact
    ASTM 2140 Static Pressure Water Head
    Miami-Dade County Approved
    Florida Building Code Approved
    Texas Department of Insurance Approval

  • Substrates Available

    Painted Galvalume® – 22ga, 24ga
    Drexlume™ – 22ga, 24ga
    Aluminum – .032″, .040″
    Copper – 16oz, 20oz
    Zinc – .7mm, .8mm
