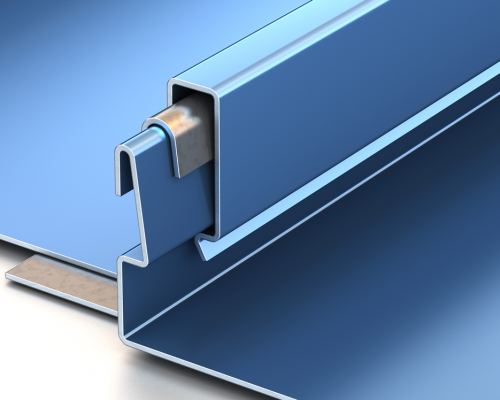

550S Profile

Standing Seam Roof Panel

A superior integral seam design and quick installation – that’s the hallmark of the DMC 550S panel. This expertly crafted interlocking roof system provides a powerfully protective weathertight seam. The finished results deliver a substantial measure of quality and style that’s certain to stand the test of time.

Technical Information:

  • 550S Profile Data Sheet

  • SUBSTRATE

    Painted Galvalume® – 22ga, 24ga
    Drexlume™ – 22ga, 24ga
    Aluminum – .032″, .040″

    PANEL RIB

    Factory made or field rolled to exact lengths.
    Options: flat panel, clip relief, striations, bead, small and large V, small and large pencil.

  • Standard Panel Widths

    15”, 19”
    Metal Edge design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.

  • SLOPE

    Minimum slope 3:12

    MINIMUM ROOF PITCH

    3:12 – low roof pitch

    Testing

    • UL 580 Wind Uplift (Class 90)
    • UL 2218 Class 4 Hail Impact
    • UL 263 Fire Certification
    • UL 790 Class A Fire Rating
    • UL Environmental – SRI Third-Party Verified

    Notice

    Metal Edge test reports are for specific attachments, material gauges, clip spacing and panel widths. A complete specification and listing is available.

    Installation

    Can be installed over plywood decking or insulated metal decking with approved underlayments.

  • 35 YEAR WARRANTY - GALVALUME AND ALUMINUM SUBSTRATES

    35 year non pro-rated PVDF Paint Warranty
    High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.

    25 YEAR WARRANTY - DREXLUME SUBSTRATE

    Mill finished Galvalume® with a two-sided, clear acrylic finish.
