Elevation Series

Wall Panel

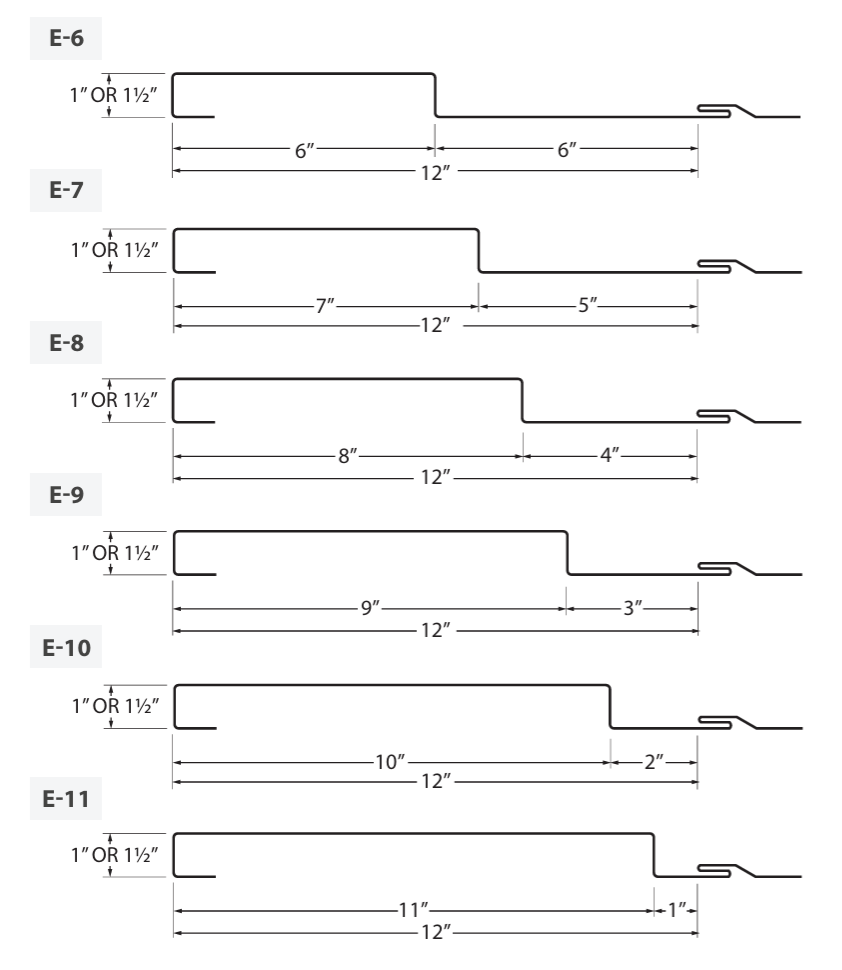

The Elevation Series panels possess various reveal options for siding and soffit applications. Its clean and consistent lines create an aesthetically pleasing look. It is common to mix and match different reveals to enhance the appearance and provide buildings a lifetime of elegance.

Technical Information:

  • Elevation Series Data Sheet

    • Coverage Width: 12”

    • Length: 2’ – 20’6”

    • Rib Height: 1” or 1-1½”

    • Materials and Thickness: 22 and 24 GA Galvalume, .032, .040, .050 Aluminum

    • Panel Attachment: Concealed Fastening System

    • Installed horizontally or vertically

    • Ease of installation – can be applied directly to solid decking or open framing

    • Typical applications include walls, ceilings, fascias, mansards, equipment screens, and soffits

  • Limited 40-Year Finish Warranty
