Hallmark series

roof + Wall Panel

The Hallmark Panel is one of the most widely used exposed fastener panels on the market — and for good reason. It's a reliable, low-maintenance option that works across commercial, residential, and post-frame applications. Built for performance and backed by Metal Edge's commitment to quality, the Hallmark delivers consistent results on nearly any project. Optional Drip Stop technology is available for added condensation control.

Technical Information:

  • Pinnacle Series Data Sheet

    • Applications: Roof and Wall

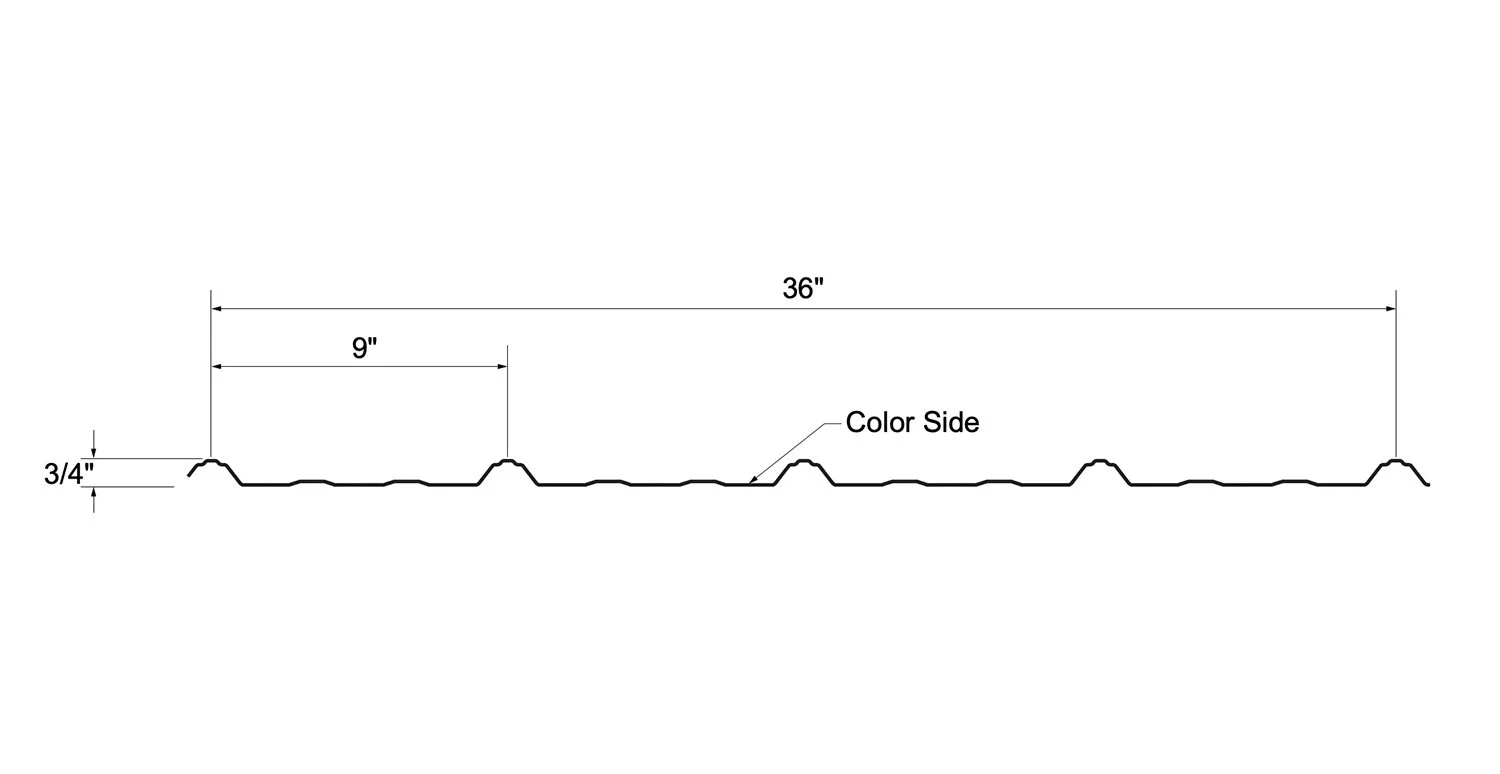

    • Coverage Width: 36"

    • Rib Height : 3/4"

    • Rib Spacing: 9" on center

    • Minimum Slope : 3:12

    • Panel Attachment: Exposed Fastening System

    • Gauge: 29 and 26

    • Texture: Smooth (standard); Embossed (optional)

    • Finish Type: Siliconized Polyester

    • Coatings: Galvalume® Plus, Signature® 200

    • Related Industries: Commercial, Residential, Post-Frame

    • The Hallmark Panel is built for a wide variety of commercial, residential, and post-frame applications.

    • It's an exposed fastener panel that works for both roof and wall applications, with a minimum roof slope of 3:12.

    • Environmental

      • Impact Resistance: Class 4 Rating (UL 2218)

      Fire Resistance

      • Class A Fire Rating (UL 790)

      • Approved for use in UL 263 Fire-Rated Assembly Designs

      Structural

      • Uplift and gravity load performance per AISI S100 — see Allowable Load Table

      Roof Listings

      • UL Uplift: Class 90 Rating (UL 580) — Construction No. 560

      • Florida Product Approval: FL #42379.1, 42379.2, 42382.7, 42382.8

      • Texas Department of Insurance: TDI 3rd Party Evaluation — FL #42379.2

      Wall Listings

      • Florida Product Approval: FL #42378.7, 42378.8
