Paragon Series

Wall Panel

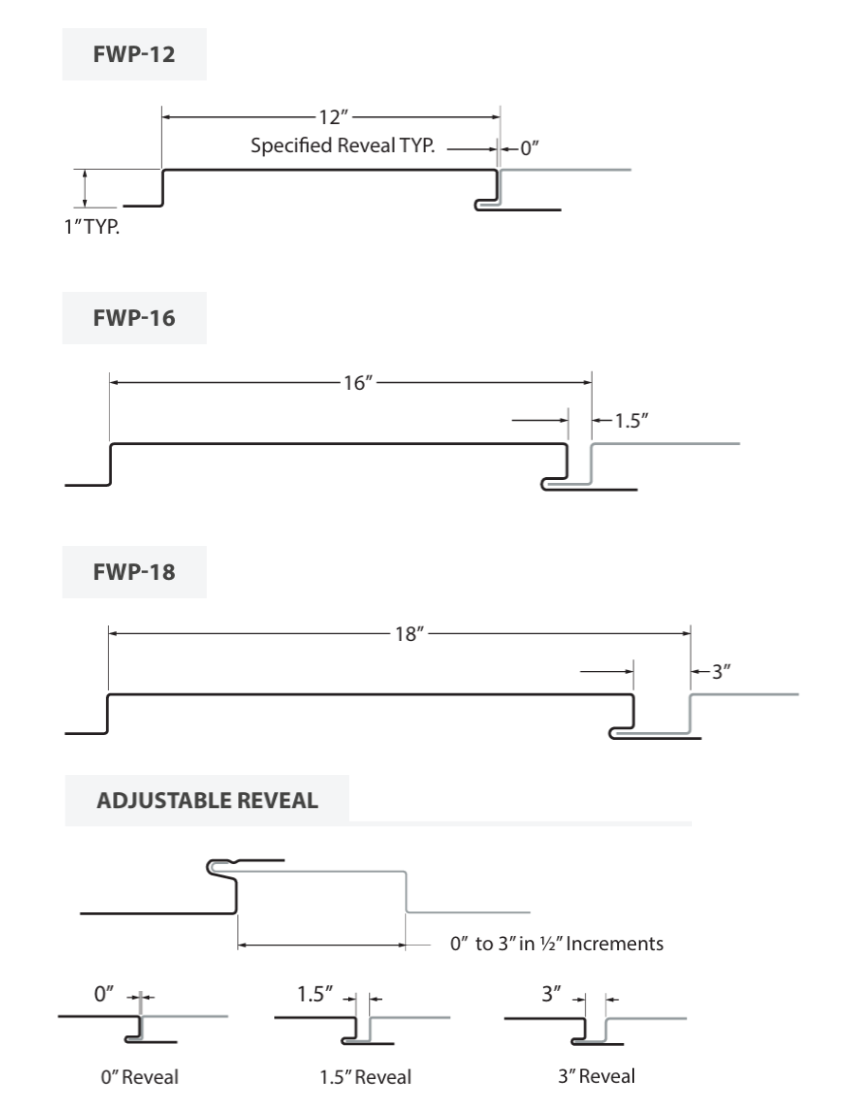

Paragon Series features a 1″ deep flush metal panel designed for use in vertical or horizontal applications for wall, fascia, and soffit. Available options include a traditional smooth appearance, perforation, and an optional reveal of up to 3″ in ½” increments. Regardless of the pattern, the 1″ depth and the tongue-and-groove engagement remain the same. These panels are formed with 24-gauge steel and coated with a Fluoropolymer PVDF (Kynar) paint system, providing durability and energy efficiency to any application.

Technical Information:

  • Paragon Series Data Sheet

    • Coverage Width: 12” 16” 18”

    • Length: 2’-20’6“

    • Rib Height: 1”

    • Materials and Thickness: 22, 24, and 26 GA Galvalume, .032, .040, .050 Aluminum

    • Panel Attachment: Concealed Fastening System

    • Coatings: Galvalume Plus, Kynar

    • Functionality for walls, fascia, and soffit

    • Installed vertically or horizontally

    • Ease of installation – can be applied directly to solid decking or open framing

    • Uplift Resistance: ASTM E 1592, UL90

    • Air Infiltration: ASTM E 283

    • Water Penetration: ASTM E 331
