Pinnacle Series

Wall Panel

The Pinnacle Series panel is an architectural panel with a ribbed appearance and a concealed fastening system. The panels feature four square-edged corrugations for a clean-lined appearance.

Technical Information:

  • Pinnacle Series Data Sheet

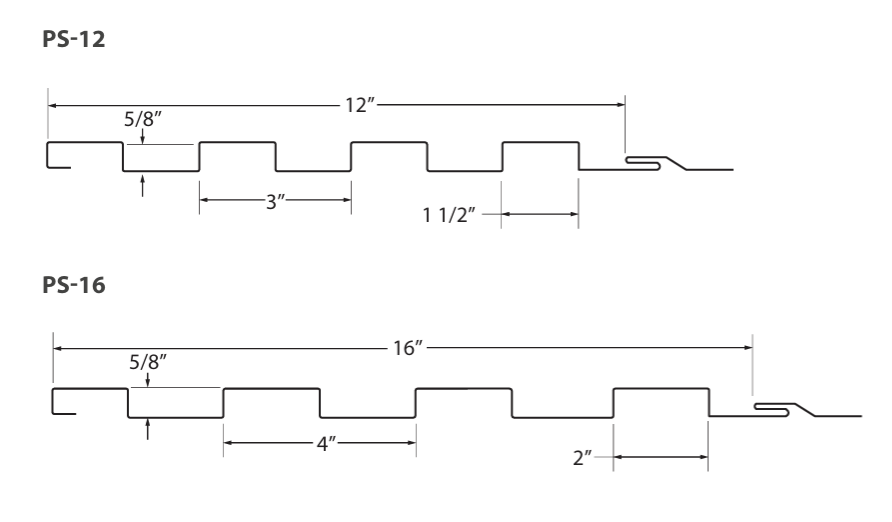

    • Coverage Width: 12” and 16”

    • Length: 2’ – 20’6”

    • Rib Height: 5/8”

    • Materials and Thickness: 22 and 24 GA Galvalume, .032, .040, .050 Aluminum

    • Panel Attachment: Concealed Fastening System

    • Installed horizontally or vertically

    • Ease of installation – can be applied directly to solid decking or open framing

    • Typical applications include walls, ceilings, fascias, mansards, equipment screens, and soffits

    • Limited 40-Year Finish Warranty
